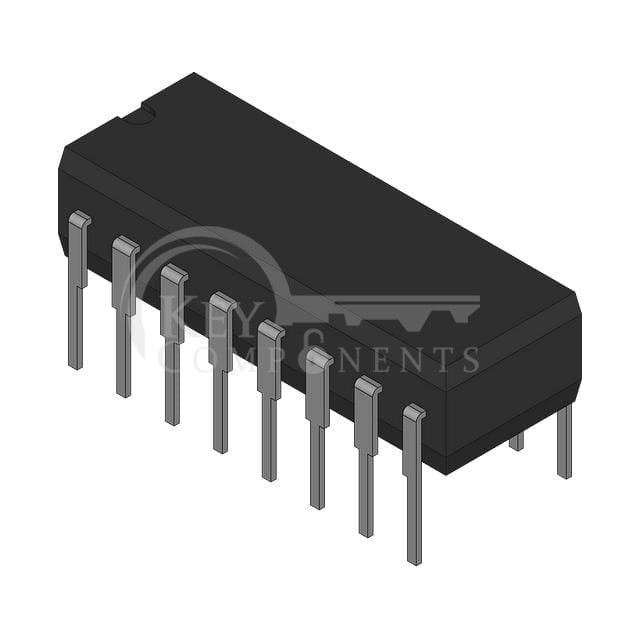

AD7813YN
| Manufacturer Part | AD7813YN |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 10BIT PARALLEL 16-DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 10 |
| Sampling Rate (Per Second): | 400k |
| Number of Inputs: | - |
| Input Type: | - |
| Data Interface: | Parallel |
| Configuration: | - |
| Ratio - S/H:ADC: | - |
| Number of A/D Converters: | 1 |
| Architecture: | - |
| Reference Type: | - |
| Voltage - Supply, Analog: | - |
| Voltage - Supply, Digital: | - |
| Features: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 16-PDIP |
| Mounting Type: | Through Hole |
