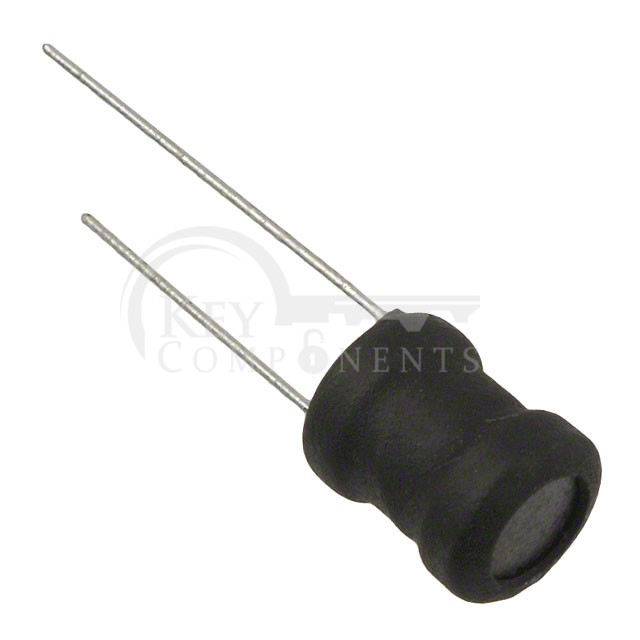

RLB0914-561KL
| Manufacturer Part | RLB0914-561KL |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 560UH 520MA 1.4 OHM TH |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 560 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 520 mA |
| Current - Saturation (Isat): | 950mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.4Ohm Max |
| Q @ Freq: | 20 @ 796kHz |
| Frequency - Self Resonant: | 1.7MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 796 kHz |
| Features: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Vertical Cylinder |
| Supplier Device Package: | - |
| Size / Dimension: | 0.343" Dia (8.70mm) |
| Height - Seated (Max): | 0.512" (13.00mm) |
