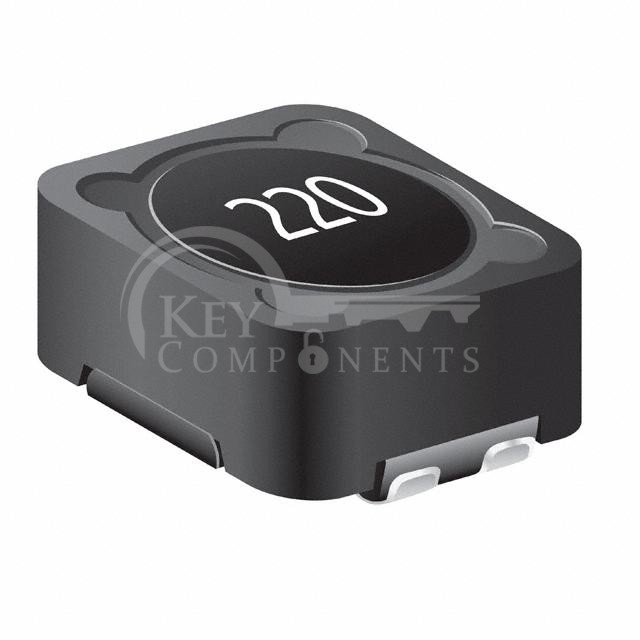

SRF1260-100M

Type	Description
Product Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	10 µH
Inductance - Connected In Series:	40 µH
Tolerance:	±20%
Current Rating - Parallel:	5.35 A
Current Rating - Series:	2.67 A
Current Saturation - Parallel:	7.17 A
Current Saturation - Series:	3.59 A
DC Resistance (DCR) - Parallel:	24.6mOhm Max
DC Resistance (DCR) - Series:	93.4mOhm Max
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.244" (6.20mm)
