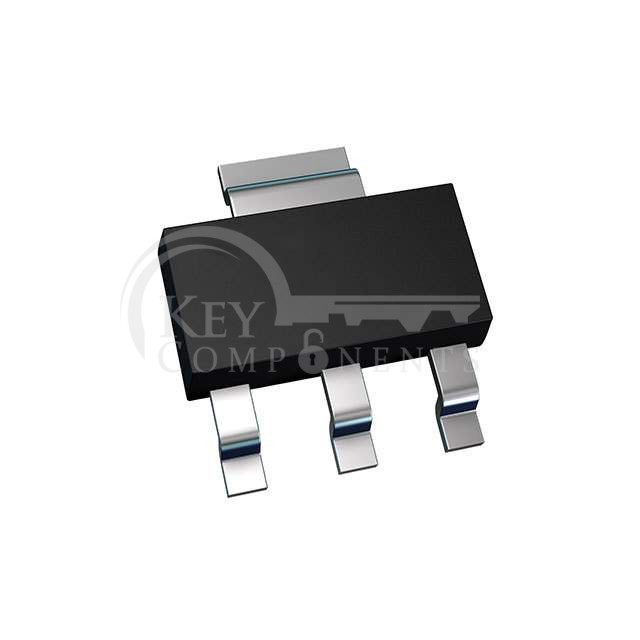

AP1122EG-13
| Manufacturer Part | AP1122EG-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG LINEAR 1.2V 1A SOT223-3 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 12V |
| Voltage - Output (Min/Fixed): | 1.2V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | 1.3V @ 1A |
| Current - Output: | 1A |
| Current - Quiescent (Iq): | 10 mA |
| Current - Supply (Max): | - |
| PSRR: | 60dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Current, Over Temperature |
| Operating Temperature: | 0°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-261-4, TO-261AA |
| Supplier Device Package: | SOT-223-3 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
