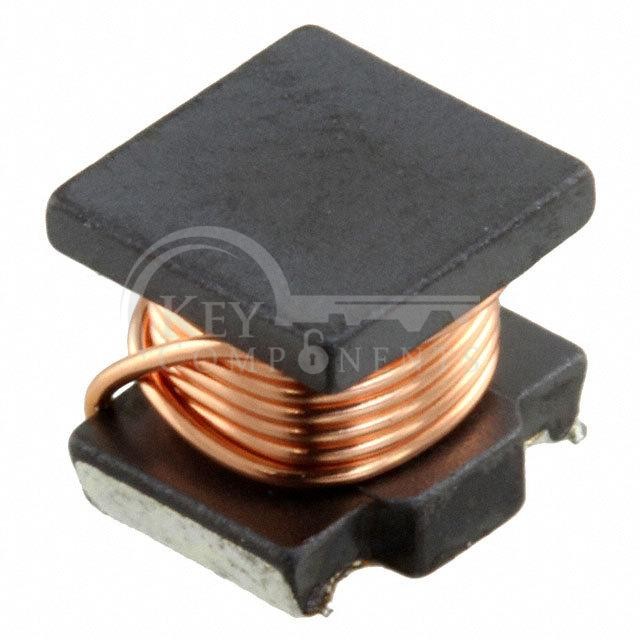

LQH55DN103M03L

LQH55DN103M03L

Manufacturer Part LQH55DN103M03L
Manufacturer Murata Electronics
Description FIXED IND 10MH 50MA 140 OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:10 mH
Tolerance:±20%
Current Rating (Amps):50 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):140Ohm Max
Q @ Freq:-
Frequency - Self Resonant:500kHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2220 (5750 Metric)
Supplier Device Package:2220 (5650 Metric)
Size / Dimension:0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max):0.197" (5.00mm)
