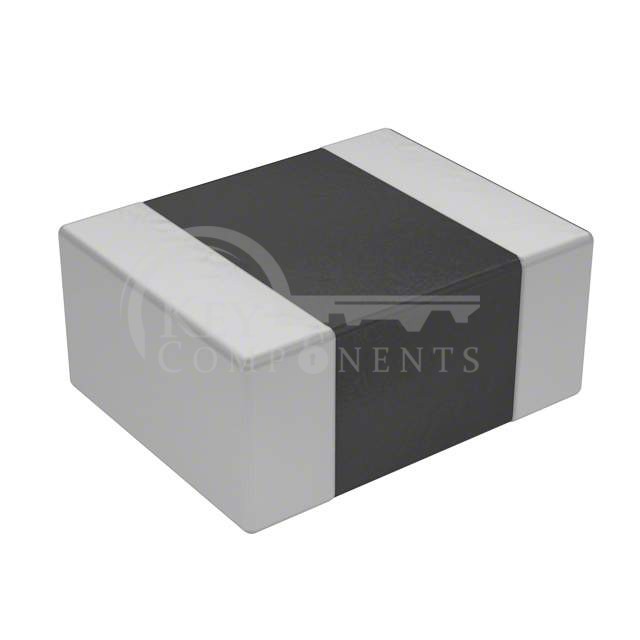

LQM21PN4R7MGHL

LQM21PN4R7MGHL

Manufacturer Part LQM21PN4R7MGHL
Manufacturer Murata Electronics
Description FIXED IND 4.7UH 1.2A 275MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:4.7 µH
Tolerance:±20%
Current Rating (Amps):1.2 A
Current - Saturation (Isat):250mA
Shielding:Shielded
DC Resistance (DCR):275mOhm Max
Q @ Freq:-
Frequency - Self Resonant:20MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.039" (1.00mm)
