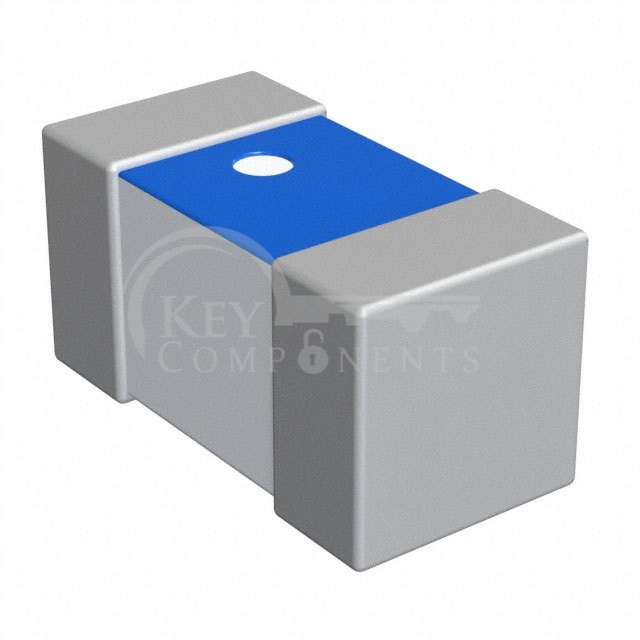

LQP03TN3N2B02D

LQP03TN3N2B02D

Manufacturer Part LQP03TN3N2B02D
Manufacturer Murata Electronics
Description FIXED IND 3.2NH 450MA 250MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Thick Film
Material - Core:Non-Magnetic
Inductance:3.2 nH
Tolerance:±0.1nH
Current Rating (Amps):450 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):250mOhm Max
Q @ Freq:14 @ 500MHz
Frequency - Self Resonant:8GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:500 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:0201 (0603 Metric)
Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):0.013" (0.33mm)
