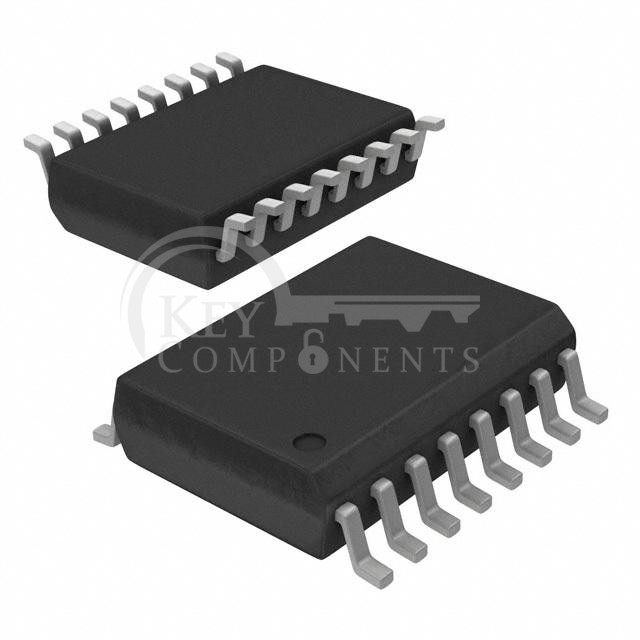

VND83013TR
| Manufacturer Part | VND83013TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC PWR DRIVER N-CHANNEL 1:1 16SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | General Purpose |
| Number of Outputs: | 2 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | High Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 6A |
| Rds On (Typ): | 60mOhm (Max) |
| Input Type: | Non-Inverting |
| Features: | Auto Restart, Status Flag |
| Fault Protection: | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 16-SO |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
