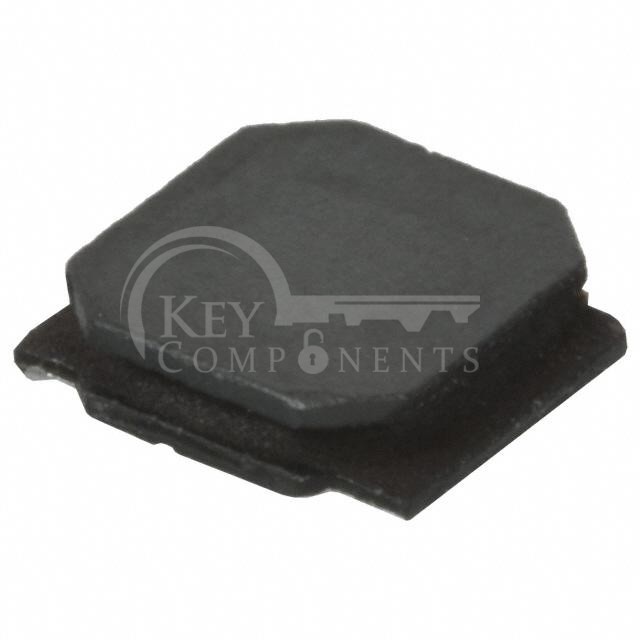

NR4012T1R0N

NR4012T1R0N

Manufacturer Part NR4012T1R0N
Manufacturer Taiyo Yuden
Description FIXED IND 1UH 1.5A 72 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:1 µH
Tolerance:±30%
Current Rating (Amps):1.5 A
Current - Saturation (Isat):2.5A
Shielding:Shielded
DC Resistance (DCR):72mOhm Max
Q @ Freq:-
Frequency - Self Resonant:131MHz
Ratings:-
Operating Temperature:-25°C ~ 120°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):0.047" (1.20mm)
