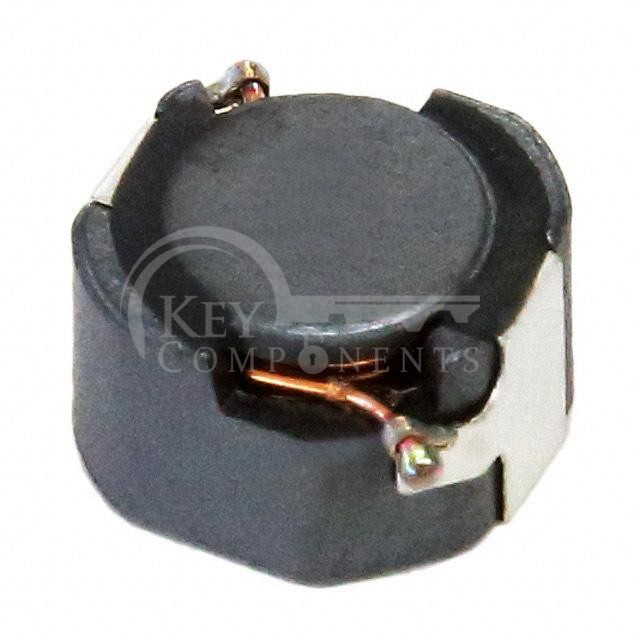

CLF7045T-4R7N-H

CLF7045T-4R7N-H

Manufacturer Part CLF7045T-4R7N-H
Manufacturer TDK Corporation
Description FIXED IND 4.7UH 4.1A 20 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Not For New Designs
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:4.7 µH
Tolerance:±30%
Current Rating (Amps):4.1 A
Current - Saturation (Isat):3.6A
Shielding:Shielded
DC Resistance (DCR):20mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.283" L x 0.272" W (7.20mm x 6.90mm)
Height - Seated (Max):0.177" (4.50mm)
