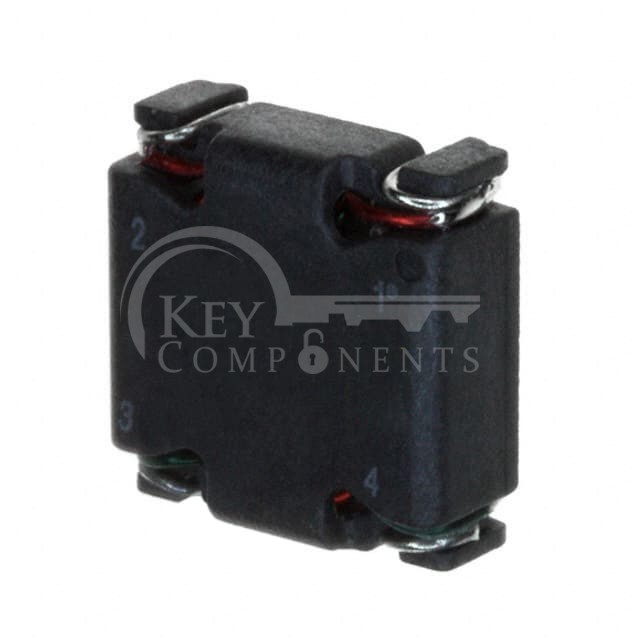

Manufacturer Part | P0176NLT |
---|---|
Manufacturer | Pulse Electronics Power |
Description | INDUCT ARRAY 2 COIL 5.5UH SMD |
Category | Inductors, Coils, Chokes |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Number of Coils: | 2 |
Inductance - Connected In Parallel: | 5.5 µH |
Inductance - Connected In Series: | 22.45 µH |
Tolerance: | ±10% |
Current Rating - Parallel: | 5.2 A |
Current Rating - Series: | 2.6 A |
Current Saturation - Parallel: | - |
Current Saturation - Series: | - |
DC Resistance (DCR) - Parallel: | 19mOhm Max |
DC Resistance (DCR) - Series: | 76mOhm Max |
Shielding: | Unshielded |
Ratings: | - |
Operating Temperature: | -40°C ~ 130°C |
Mounting Type: | Surface Mount |
Package / Case: | Nonstandard |
Size / Dimension: | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
Height: | 0.215" (5.46mm) |
